T96V

(1G+8G)

Product Specification

Ver 1.0



Product Specification1

Item

Description

Dimension

90*90*20mm

System Config.

CPU

Amlogic S905W Quad Core ARM  Cortex A53 @2GHz

GPU

Penta-core Mali-450MP GPU @  750MHz,

RAM

DDR3 1GB

ROM

Onboard eMMC Flash 8GB

Expand Memory

Micro SD Card (Maximum support 32GB)

Antenna

Built-in antenna for Wi-Fi

Communication

Ethernet

100Mbps LAN

Wi-Fi

IEEE 802.11 b/g/n

BT

No

Media

UHD 4K×2K

Yes Support

Full HD 1080P

Yes Support

HEVC H.265

Yes Support

Video/Picture Decoding

* AMLogic video Engine(AVE)with dedicated  hardware decoders and encoders

* Supports multiple  "secured"video decoding sessions and simultaneous decoding and  encoding

* Video/Picture Decoding

   -VP9 Profile-2 up to 4K*2K

   -H.265 HEVC MP-10@L5.1 up to 4K*2K@

   -H.264 AVC HP@L5.1 up to 4K*2K

   -H.264 MVC up to 1080P@60fps

   -MPEG-4 ASP@L5 up to 1080P@60fps(ISO-14496)

   -WMV/VC-1 SP/MP/AP up to 1080P@60fps

   -AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps

   -MPEG2 MP/HL up to 1080P@60fps

   -MPEG1 MP/HL up to 1080P@60fps

   -RealVideo 8/9/10 up to 1080P@60fps

* Low latency 1080P H.264 60fps encoder

* HDR10 and HLG HDR Video Processing

* Supports  *.mkv,*.mpg,*.wmv,*.mpeg,*.dat,*.avi,*.mov,*.iso,*.mp4,*.rm and *.jpg file  formats

* Video/Picture Encoding

   -Independent JPEG and H.264 encoder with configurable  performance/bit-rate

   -JPEG image encoding

   -H.264 video encoding up to 1080P@60fps with low latency

Audio format

Low power MediaCPU with DSP audio processing

Supports MP3,AAC,WMA,RM,FLAC,Ogg and  programmable with 7.1/5.1 down-mixing

Built-in stereo audio DAC

Built-in SPDIF/IEC958 and PCM serial  digital audio input/output

Supports concurrent dual audio stereo  channel output with combination of analog+PCMo or I2S+PCM

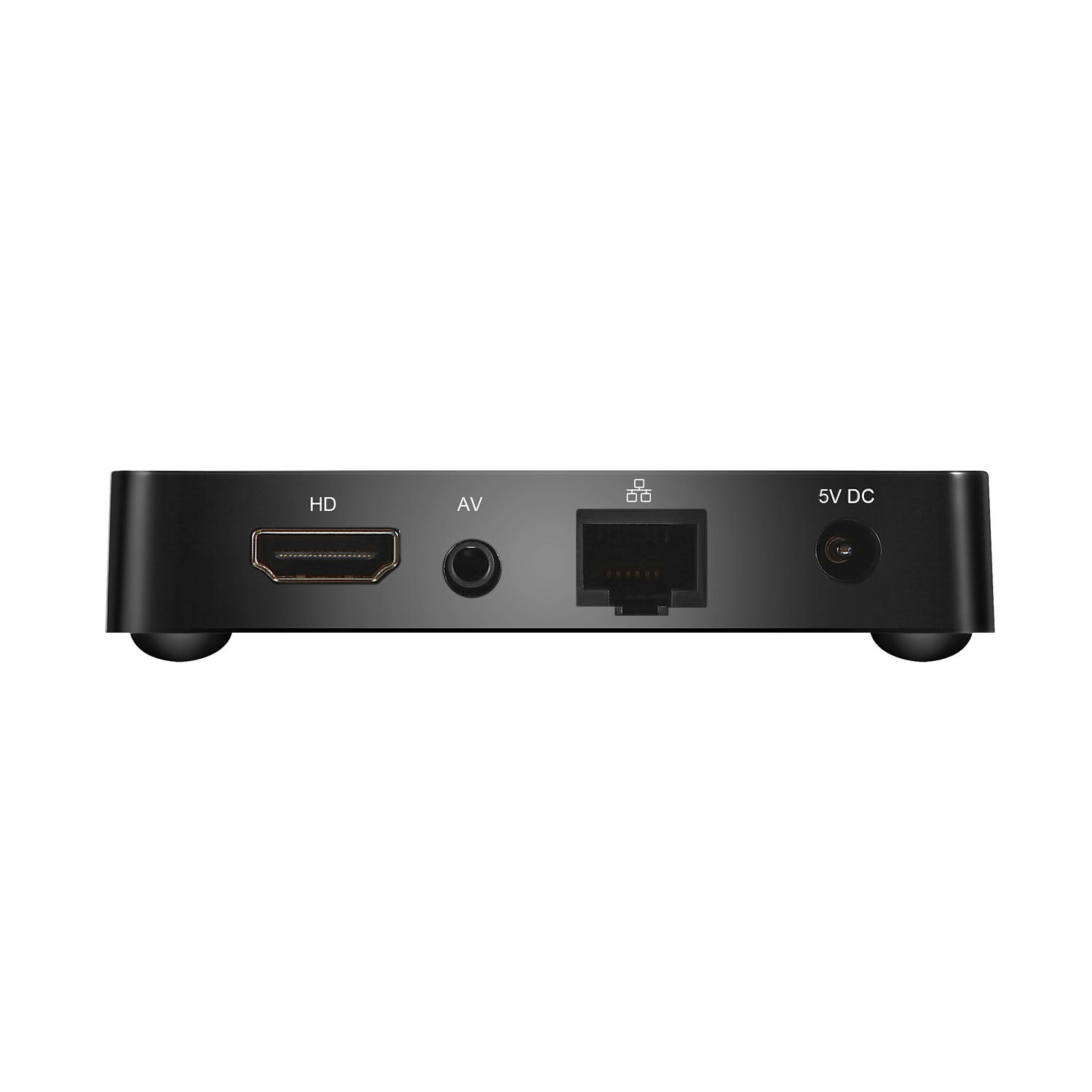

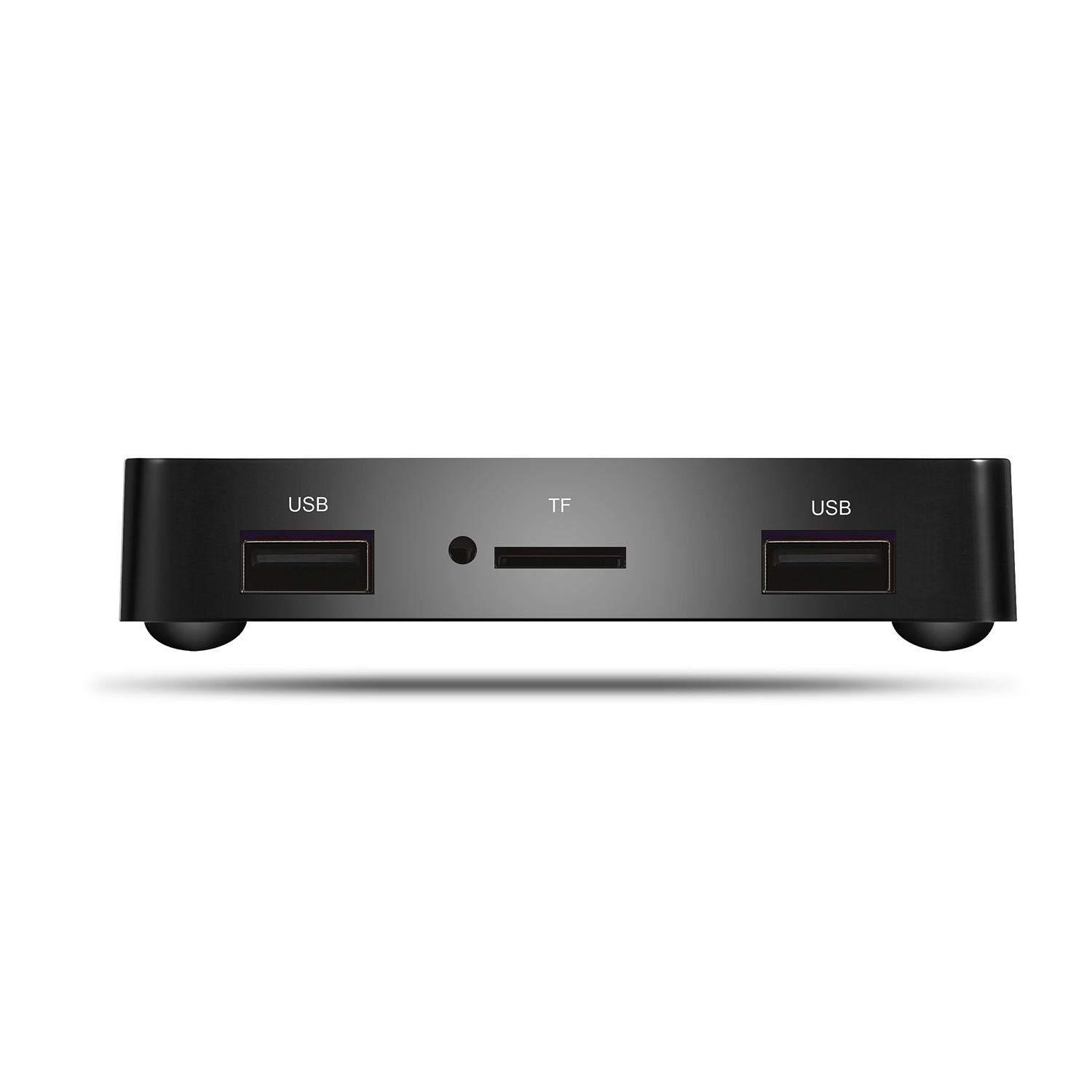

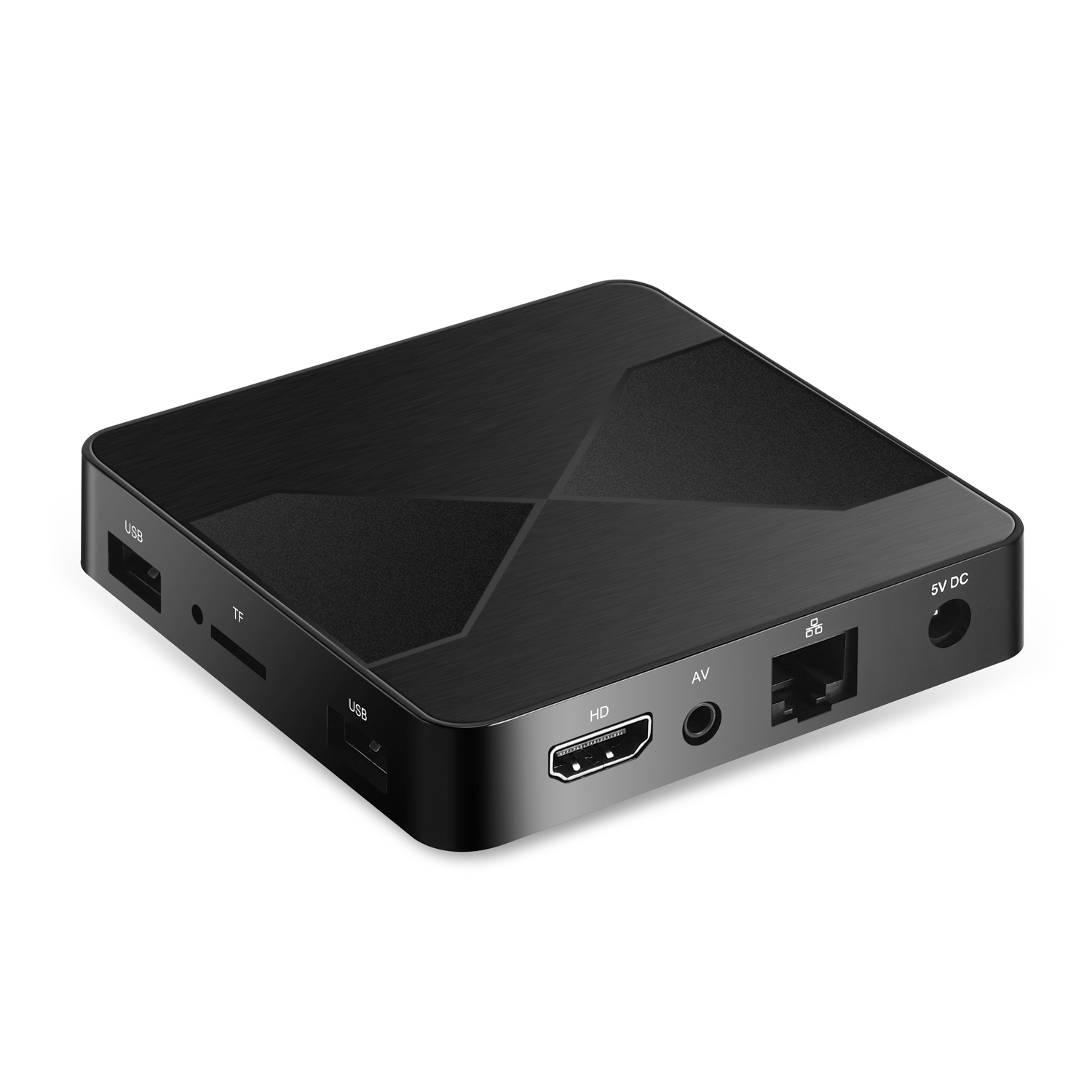

I/O

USB2.0

1* USB Host Port ,1*USB Device

DC-in

1*DC in Jack

HDMI

4K*2K  UHD Output, HDMI 2.0b

AV

1*AV Port 480i/576i standard definition output

SPDIF

1*SPDIF (2CH,  5.1CH)

IR-in

1*IR-in Remote Reciver Connect

RJ45

1*RJ45

SD Card Slot

1* Micro SD card slot Support 4GB/8GB/16GB/32GB/64GB

Power management

Adapter

5V 2A

Software Config.

OS

Android 7.1.2

Language

Multi -language

Keyboard

Qwerty keyboard

Features

Miracast/DLNA

Support

Work Environment

5°C--35°C30%--90%Humidity

Storage  Environment

-20°C--60°C10%--90%Humidity
